Helio Spark Red Light Therapy Panel | 72 LEDs

The Helio Spark Red Light Therapy Panel is a compact red and near-infrared light panel designed for targeted areas. It features 72 LEDs across six wavelengths: 630, 660, 810, 830, 850, and 1064 nm. The panel includes a tabletop stand, touchscreen controls, and a remote control for selecting and adjusting light settings.

The Helio Spark offers five preset modes, Full Spectrum mode, and Custom Mode. Custom Mode allows users to adjust intensity, session timing, and pulse frequency across the available channels. Measuring 11.8 × 11.4 × 2.4 inches and weighing 8.8 lb, the compact panel is designed for targeted use at home or while traveling.

Key Features

• 72 LEDs: Features 72 single-chip LEDs for targeted light applications.
• Six Wavelengths: Includes 630, 660, 810, 830, 850, and 1064 nm wavelengths.
• Red & Near-Infrared Light: Uses red, near-infrared (NIR), and deep near-infrared wavelengths.
• Multiple Modes: Includes five preset modes, Full Spectrum, and Custom Mode.
• Custom Settings: Adjust intensity, timing, and pulse frequency by channel.
• Touchscreen & Remote: Operate the panel using the built-in touchscreen or remote control.
• Adjustable Pulsing: Pulse frequency can be adjusted from 0–5000 Hz in Custom Mode.
• Imperceptible Flicker: Manufacturer reports imperceptible flicker.
• Low EMF: Manufacturer reports 0.0 μT at distances of 6 inches and greater.
• Long-Lasting LEDs: LED lifespan is rated at more than 100,000 hours.
• Tabletop Stand: Includes a tabletop stand for positioning the panel.
• Portable Format: Compact design is suitable for home use and travel.
• Protective Eyewear: Includes protective reading glasses and blackout goggles.
• No App Required: Operates through the touchscreen and remote without requiring an app or account.
• Independent Testing: Helio Cure states that its product line has been independently evaluated by LightLab International for relevant performance characteristics.
• Warranty & Returns: Includes a 3-year warranty and 60-day return period according to the manufacturer.

Who It’s For

The Helio Spark Red Light Therapy Panel is suited to shoppers looking for a compact red light therapy panel with red and near-infrared wavelengths, adjustable settings, and a tabletop stand. Its smaller format is designed for targeted areas rather than the larger coverage provided by full-size panels.

Specifications

• Product Type: Red and near-infrared light therapy panel
• Model: Helio Spark
• LED Count: 72
• LED Type: 3535 single-chip
• LED Wattage: 5 watts
• Wavelengths: 630, 660, 810, 830, 850, 1064 nm
• Red LED Density: 38.88%
• NIR LED Density: 41.66%
• Deep NIR Density: 19.44%
• Irradiance at 6 Inches: 98.87 mW/cm²
• Irradiance at 12 Inches: 93.25 mW/cm²
• Irradiance at 24 Inches: 81.89 mW/cm²
• Irradiance at 36 Inches: 61.59 mW/cm²
• Beam Angle: 16.9°
• Pulse Frequency: 0–5000 Hz
• Flicker: Imperceptible, according to manufacturer testing
• EMF: 0.0 μT at 6 inches and beyond, according to manufacturer testing
• LED Lifespan: More than 100,000 hours
• Panel Material: Iron

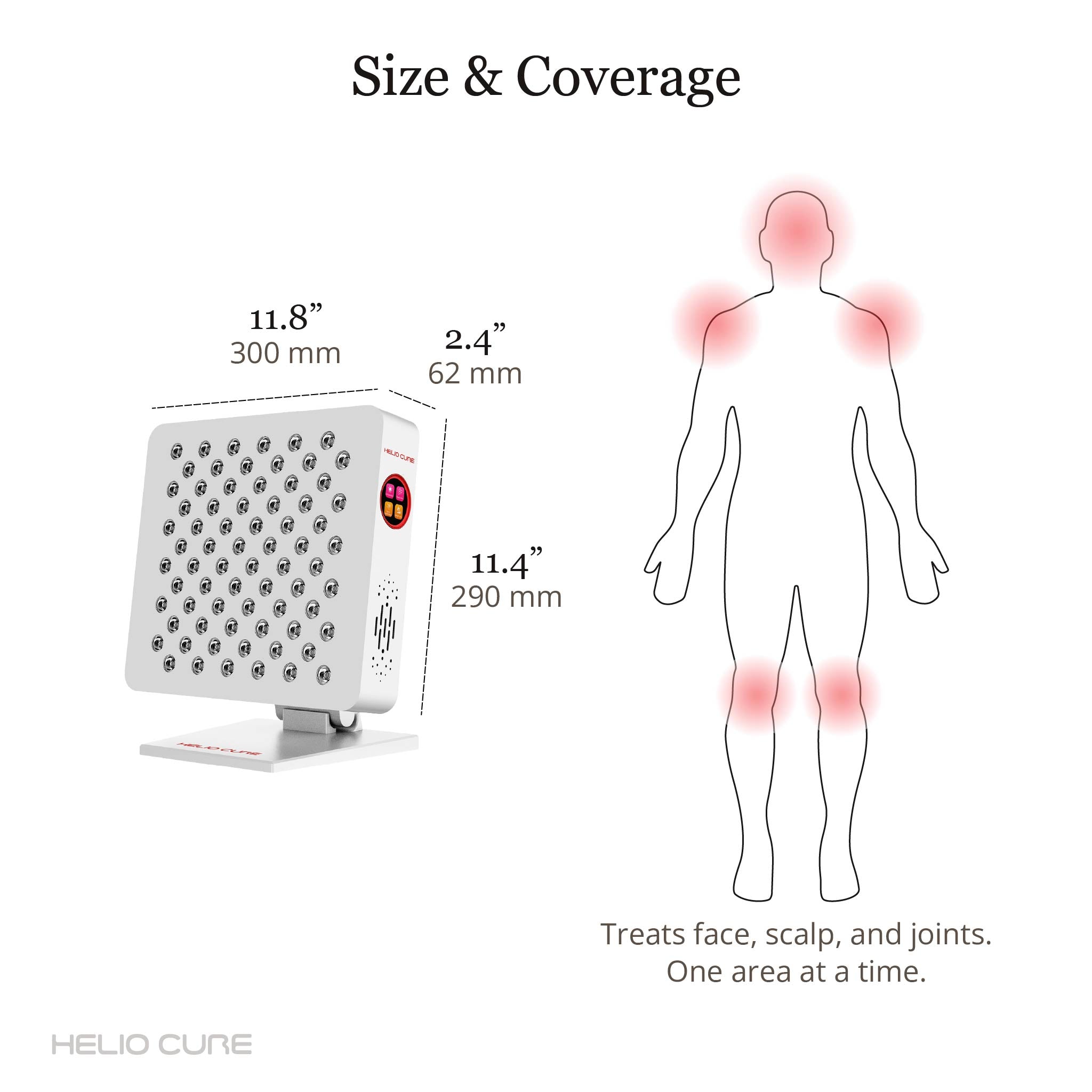

• Panel Dimensions: 11.8 × 11.4 × 2.4 inches
• Panel Weight: 8.8 lb
• Power Consumption: 120 watts typical
• Voltage: AC 100–240 V
• Controls: Touchscreen and remote control
• Certifications: FDA registered; CE and RoHS certified, according to the manufacturer

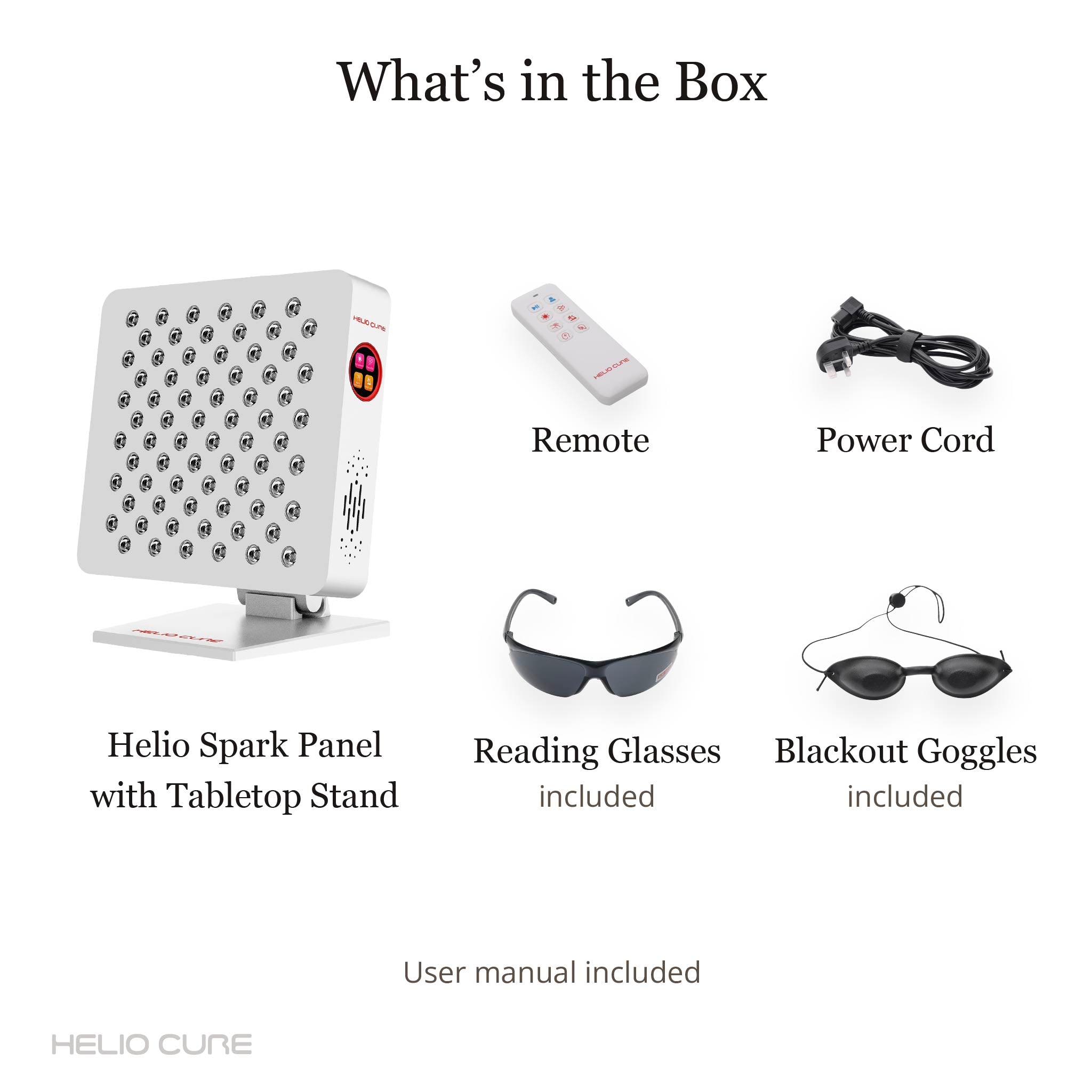

• Included: Helio Spark panel with tabletop stand, remote control, power cable, protective reading glasses, blackout goggles, and user manual
• Warranty: 3 years
• Returns: 60 days
